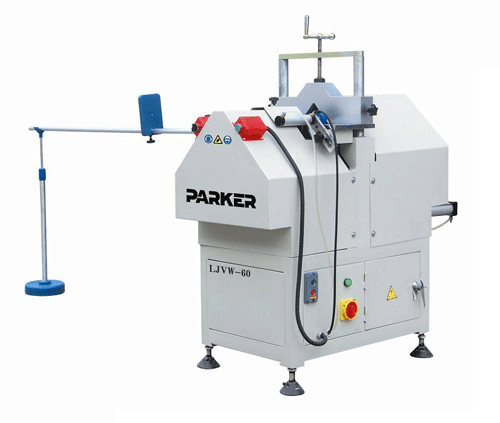

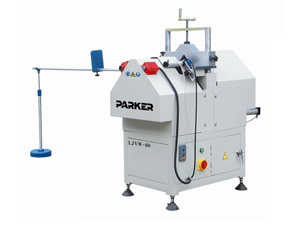

LJVW-60 V Type PVC Profile Cutting Saw
Description
LJVW-60 PVC profile V-cutting saw is mainly used for 90° V-shaped groove cutting process for PVC profiles. It can also be used for cutting aluminum profiles. This V shaped cutting machine or V shaped cutter features reasonable structure, safe and convenient operation, and long usage life. It also adopts pneumatic driving, contributing to easy operation. Parker Machinery Co., Ltd is a leading supplier and exporter of PVC profile V-cutting saws in China. With advanced technological equipment, tremendous technical strength and reliable product quality, our V shaped cutting machines have received a number of favorable comments from customers both home and abroad.
Technical Parameters
| Model | LJVW-60 PVC Profile V-Cutting Saw |
| Voltage | 380V 50 Hz |
| Motor Power | 2.2 kW |
| Air Pressure | 0.4 to 0.6 MPa |
| Air Consumption | 80 L/min |
| Rotary Speed | 2800 r/min |
| Cutting Depth | 0 to 65 mm |
| Cutting Thickness | 0 to 120 mm |
| Overall Dimension | 2260 mm × 1380 mm × 1350 mm |
| Weight of V Shaped Cutting Machine | 240 kg |
Service for PVC Profile V-Cutting Saw
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for V shaped cutters. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our V shaped cutting machines.
3. If our customers need our company to send engineers to test PVC profile V-cutting saws and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time
1. For domestic customers, we will deliver our V shaped cutting machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver PVC profile V-cutting saws within 25 to 30 days after receiving their order.
Founded in 2003, Parker Machinery Co., Ltd has been engaged in producing door and window equipment for ten years. The main products include insulating glass machine, V shaped cutting machine, curtain wall equipment, and so on. With advanced technological equipment, tremendous technical strength and reliable product quality, our PVC profile V-cutting saws have been exported to South Korea, Canada, USA, Australia, France, Iran, South Africa, etc.
