SJ02-3500 PVC Profiles Double Head Mitre Saw
Introduction

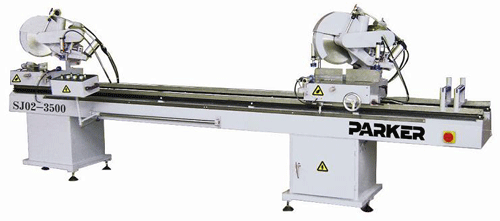

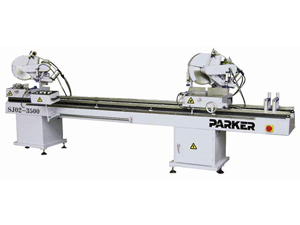

SJ02-3500 PVC profile double head mitre saw is mainly made up of saw head, working table and machine frame. It is used for 45° to 90° cutting processing of aluminum and PVC profiles with single or double saw heads. This double mitre saw features high efficiency and flexible operation and is the necessary equipment for PVC door processing. There are movable shields on the heads of double head mitre saw. The working table moves fast and can be locked in the location according to your need.
Advantages of Parker Double Mitre Saw
1. Air pressure drives feeding and pressing. The speed can be adjusted.
2. SJ02-3500 double head mitre saw features fast feeding and high cutting precision.
3. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.
4. With a professional technical team of first-class rich experience and well-trained technicians, our double mitre saws have received a number of favorable comments from customers both home and abroad.
Technical Parameters
| Model | SJ02-3500 PVC Profiles Double Head Mitre Saw |
| Voltage | 380V 50 Hz |
| Motor Power | 3 kW |
| Air Pressure | 0.4 to 0.6 MPa |
| Air Consumption | 100 L/min |
| Blade Specification | Φ350 × Φ30 × 3.2 Z = 100 |
| Max. Cutting Width | 200 mm |
| Max. Cutting Height | 100 mm |
| Double Saw Head Cutting Length | 450 mm to 3500 mm |
| Overall Dimension | 4000 mm × 1120 mm × 1500 mm |
| Weight of Double Mitre Saw | 650 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for double head mitre saws. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our double mitre saws.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time of Double Head Mitre Saw
1. For domestic customers, we will deliver double mitre saws within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver products within 25 to 30 days after receiving their order.
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of double head mitre saws. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality PVC profile cutting machines for customers. Our double mitre saws are exported to many countries and regions, such as North America, East Europe and the Middle East.
