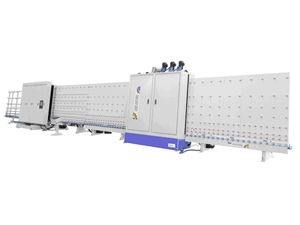

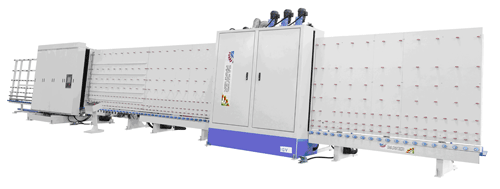

IGV6 Automatic Insulating Glass Produce Line
Introduction
IGV6 insulating glass production line is mainly used for processing insulating glass. The whole machine adopts touch screen operating system that makes it easy to operate. The working condition of the sensor and motor can be display on the screen. This insulating glass processing machine is easy to find out errors if there is any trouble. Lantoky® Machine is a leading supplier and exporter of insulating glass production lines in China.
Service
1. Lantoky provides one year guarantee time. During the warranty period, we supply free repair for insulating glass processing machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our insulating glass production lines.
3. If our customers need our company to send engineers to test insulating glass processing machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Technique Parameters
Model | IGV6 Automatic Insulating Glass Production Line |
Power Supply | 380V |
Power | 17.58 kW |
Air Consumption | 200 L/min |
Max. Process Dimension | 2500 mm × 1800 mm |
Min. Process Dimension | 540 mm × 350 mm |
Max. Thickness of the Insulating Glass | 40 mm |
Convey Speed | 12 to 40 m/min |
Weight | 4000 kg |
Dimension | 15900 mm × 2100 mm × 2960 mm |
Delivery Time
1. For domestic customers, we will deliver insulating glass processing machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Lantoky will deliver insulating glass production lines within 25 to 30 days after receiving their order.
Established in 2003, Lantoky® Machine has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Lantoky has become a leading manufacturer of insulating glass processing machines. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality insulating glass production lines for customers. Our products are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
