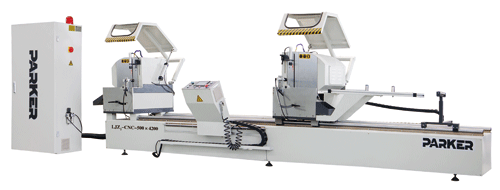

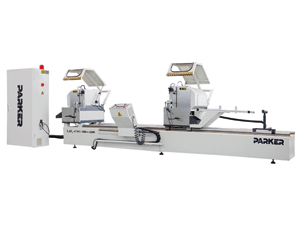

LJZ2-CNC-500×4200 CNC Double Mitre Saw

Description
LJZ2-CNC-500×4200 CNC double mitre saw is used for cutting aluminum window and door profiles, curtain walls and other industrial aluminum profiles. It is also used for corner connector cutting. Adopting CNC technique, this double head mitre saw can achieve automatic cutting for various profiles. High speed rotating spindles and blades driven by motor can realize precise feeding and cutting. CNC double mitre saw can achieve different cutting lengths by inputting information on the computer display. Three cutting angles (45°, 90°, 67.5°) are converted by button. Besides, this double head mitre saw is equipped with air-liquid switching device that ensures stable cutting speed.

Features of LJZ2-500×4200 CNC Double Mitre Saw
1. Its feeding system adopts imported linear guide pair with high accuracy and long service life.
2. This double head mitre saw adopts imported carbide saw blade which ensures accurate processing and high endurance.
3. Special designed air-controlled angle converting device replaces the magnetic valve control. Magnetic valve problem is eliminated.
4. Due to air-hydraulic damping cylinder, CNC double mitre saw achieves uniform sped feeding and smooth motion.
5. This double head mitre saw is installed with automatic opening guard shield ensuring safety operation.
6. Special designed angle locating device ensures cutting angle's stability.
7. Parker CNC double mitre saw can realize continuous cutting with different lengths.

Parameters Data

Model	LJZ2-CNC-500×4200 Double Head Mitre Saw
Repeating Fixed Length Precision	≤ 0.2 mm
Cutting Angle Error	± 5′
Cutting Plainness	≤ 0.1 mm
Cutting Sag of CNC Double Mitre Saw	≤ 0.1 mm
Cutting Harshness	Ra12.5 µ m
Power Supply	380V 50 Hz （Three Phase, Four Wire）
Motor Power	2.2 kW × 2
Rotary Speed	2800 rpm
Saw Blade Size	Φ500 × 4.4 × Φ30 × Z120
Air Pressure of CNC Double Head Mitre Saw	0.5 to 0.8 Mpa
Air Consumption	200 L/min
Cutting Angle	90° 45° 67.5° 22.5°
Cutting Length	Max. 4200 mm Min. 400 mm
Cutting Width	Max. 140 mm
Cutting Height	Max. 300 mm
Feeding Speed	0 to 3 m/ min (Variable Speed)
Overall Dimension	5500 mm × 1700 mm × 1800 mm
Weight of CNC Double Mitre Saw	1800 kg

Parker Machinery Co., Ltd mainly supplies CNC double head mitre saw, insulating glass machine, PVC window and door machine and curtain wall equipment for sale. With ten years' production experience, Parker CNC double mitre saws have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker can also send our engineers to test the machines and to train the customers' workers.
