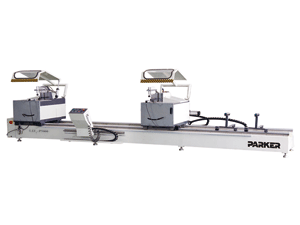

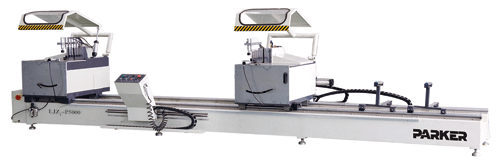

LJZ2-P5000 Aluminum Profile Cutting Machine
Description
LJZ2-P5000 aluminum profile cutting machine is mainly used for aluminum profile and curtain wall profile cutting. This double head cutting saw is also applicable for cutting plastic profile, radiating rib, wooden material, water pipe, sound faceplate and sawing aluminum extrusion materials. It can also be used for cutting aluminum alloy casement window, window material and 45° angle of aluminum window profile. The aluminum profile cutting machine can be installed with a digital-display ruler that can adjust dimension conveniently and locate profiles with high accuracy. This double head cutting saw is especially suitable for high accuracy cutting request of high-class aluminum profiles.
Features
1. LJZ2-P5000 aluminum profile cutting machine is famous for its stable structure, small vibration and high cutting precision. The structure is strong and of excellent rigidity and reliability, so it is impossible to be out of shape.
2. This double head cutting saw adopts high quality electrical components with high reliability.
3. Adopting imported components, the lifetime of its pneumatic system is much longer.
4. Lantoky aluminum profile cutting machine can cut multiple profiles at one time, so its efficiency is high.
5. Digital display system shows the cutting length and quantity automatically.
6. Imported carbide saw blade with long using life ensures the double head cutting saw processes accurately.
7. Feeding system adopts imported linear guide pair with high accuracy and stable performance.
8. The horsepower of aluminum profile cutting machine can be changed according to different cutting requirements.
9. Airdraulic cylinder can realize uniform speed feeding and smooth motion of cutting saw.
10. This double head cutting saw is safe and easy to operate.
Technical Specfications
| Model | LJZ2-P5000 Aluminum Profile Cutting Machine |
| Power Supply | 380V 50 Hz |
| Power | 2 × 2.2 kW |
| Rotary Speed | 2800 rpm/min |
| Cutting Length | 400 mm to 4200 mm |
| Cutting Height | 0 to 320 mm |
| Working Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 80 L/min |
| Cutting Angle | 45° 90° |
| Blade Specification | 500 × 4.4 × 30 × Z120T |
| Dimension | 5500 mm × 1750 mm × 1990 mm |
| Weight of Double Head Cutting Saw | 1800 kg |
Lantoky® Machine is a leading supplier and exporter of aluminum profile cutting machines in China. We also provideinsulating glass machine, PVC window and door machine, curtain wall equipment, and so on. Complying with European standards, we always purchase main parts internationally. Our double head cutting saws have passed CE and UL certifications. Lantoky aluminum profile cutting machines are exported to many countries and regions, such as North America, East Europe and the Middle East.
