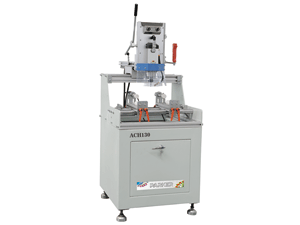

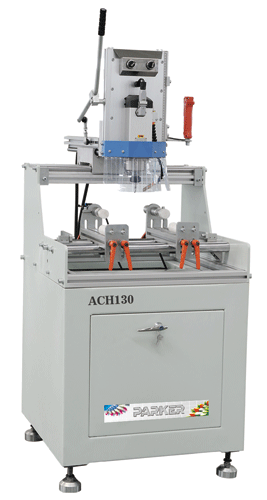

ACH-130 Aluminum Curtain Wall High Speed Copy Router

Description
ACH-130 aluminum curtain wall high speed copy router is used for processing different kinds of holes, grooves, water slots, aluminum alloy doors and windows, and so on. This single axis copy router adopts imported special aluminum alloy cutters to improve the precision and efficiency. Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. We have been dedicated to producing high speed copy routers for ten years. High processing precision and smoothness makes this single axis copy router become the most ideal milling equipment in accordance with advanced standards.

Features
1. ACH-130 aluminum curtain wall high speed copy router features compact structure and small volume.
2. All the clamping device and motor adopt air pressure control.
3. This single axis copy router has many advantages, such as high efficiency, continuous process, easy operation and large use scope.
4. It is easy to change copying plates.
5. This high speed copy router is of low fault rate.

Technical Parameters

Model	ACH-130 High Speed Aluminum Curtain Wall Single Axis Copy Router
Voltage	380V 50 Hz
Motor Power	3.0 kW
Air Pressure	0.5-0.8 MPa
Diameter of Milling Cutter	Ф8 mm
Air Consumption	10 L/min
Processing Profile Section	200 mm (W) × 150 mm (H)
Copying Dimension	370 mm × 125 mm
Overall Dimension	720 mm × 1070 mm × 1760 mm
Weight of High Speed Copy Router	225 kg

Parker Machinery Co., Ltd mainly provides aluminum window door machine, insulating glass machine, PVC window and door machine, curtain wall equipment, and so forth. Our single axis copy routers are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. With advanced technological equipment, tremendous technical strength and reliable product quality, aluminum curtain wall high speed copy routers are highly appraised by customers from over 100 countries and districts.
