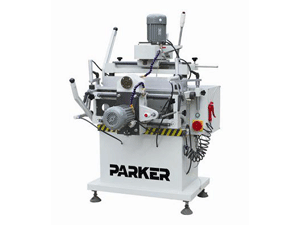

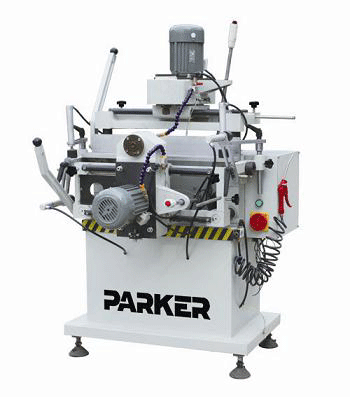

LFX2-300×100 Double Axis Copy Router
Introduction
LFX2-300×100 double axis copy router is mainly applicable for processing various kinds of holes, grooves and water slots on aluminum windows and doors. This copy router machine consists of vertical milling cutter, horizontal milling cutter, copy routing pole, operation pole, machine body, pneumatic system and electric system. This machine is also called double axis copy milling machine. Parker double axis copy router adopts imported milling cutter for improving the milling effect and extending its service life. Besides, this copy router machine uses vertical and horizontal clamping modes to prevent misplacing profiles.
Features
1. With different copy routing plates, double axis copy router can process different shapes of holes, grooves and water slots on aluminum profiles.
2. This copy router machine has features of compact structure and small volume.
3. It can achieve continuous copy routing milling at vertical direction and horizontal direction.
4. Easy replacement of the copy routing plate is available for this machine.
5. Parker double axis copy router is convenient and simple to operate and maintain.
Parameters
| Model | LFX2-300×100 Double-Axis Copy Router Machine |
| Processing Surface Straightness | ± 0.1 mm |
| Processing Surface Roughness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz |
| Motor Power | 2.2 kW |
| Rotary Speed | 2800 rpm |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling Cutter | Φ5mm, Φ8mm |
| Copying Dimension | 90 mm × 290 mm（Vertical） 100 mm × 300 mm（Horizontal） |
| Overall Dimension | 900 mm × 1000 mm × 1420 mm |
| Weight of Double Axis Copy Router | 200 Kg |
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of copy router machines in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality door and window equipment for customers. Our double axis copy routers are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
