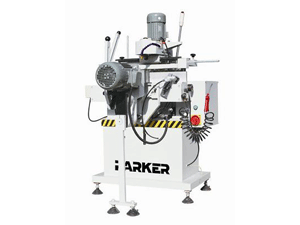

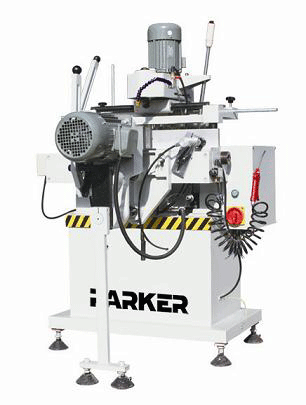

LFZ3 Aluminum Copy Router and Drilling Machine/Copy Router and Three Hole Drilling Machine
Introduction
LFZ3 aluminum copy router is often applied for processing lock holes, grooves and water slots on aluminum windows and doors. This three hole drilling machine is also used for PVC profile milling. It can finish copy routing and drilling on vertical and horizontal planes simultaneously. Lantoky® Machine is a leading supplier and exporter of door and window equipment in China. Our aluminum copy routers have passed CE and UL certifications. They have been well received for high quality, guaranteed service and favorable price. Lantoky three hole drilling machines are exported to many countries and regions, such as North America, East Europe and the Middle East.
Features
1. Copy routing processing is available.
2. Our aluminum copy routers can realize horizontal drilling of three holes and vertical copy routing of long holes.
3. It features compact structures, small volume, high efficiency and double uses.
4. Lantoky three hole drilling machine adopts imported milling cutter for improving the milling effect and extending its service life.
5. Aluminum copy router is simple and convenient to operate and maintain.
6. Vertical and horizontal clamping is used for preventing misplacing profiles.
7. This three hole drilling machine is equipped with an air gun with a long pipe for cleaning.
Technical Parameters
| Model | LFZ3 Aluminum Copy Router and Drilling Machine |
| Profile Dimension Error | ± 0.1 mm |
| Profile Position Error | ± 0.2 mm |
| Milling Harshness | Ra12.5 µ m |
| Power Supply | 380V 50 Hz |
| Motor Power | 1.85 kW |
| Rotary | 12000 rpm (Vertical); 910 rpm (Horizontal) |
| Air Pressure | 0.5 to 0.8 Mpa |
| Diameter of Milling | Φ5 mm Ф8 mm |
| Diameter of Drilling Bit | Φ12 mm |
| Copy Dimension | 290 mm × 90 mm |
| Overall Dimension | 900 mm × 900 mm × 1410 mm |
| Weight of Three Hole Drilling Machine | 212 kg |
With ten years' production experience of door and window equipment, Lantoky® Machine has become a leading manufacturer in this field. The main products are aluminum copy router and drilling machine, insulating glass machine, PVC window and door machine, curtain wall equipment, aluminum profile cutting machine, and so on. We have a perfect sales network and complete service system in China. We constantly keep innovating, improving the level of this industry and making high quality three hole drilling machines for customers.
