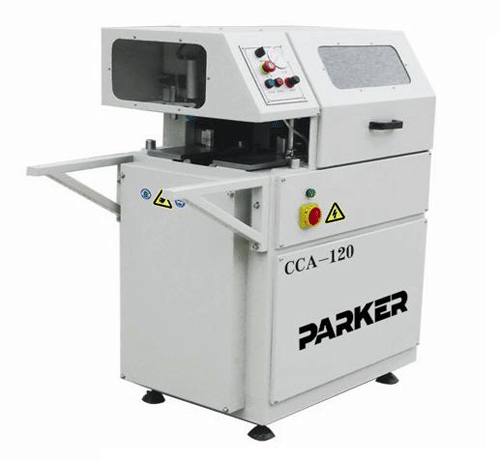

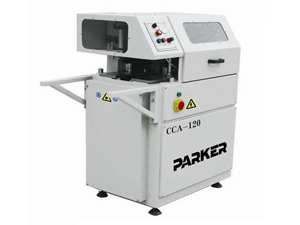

CCA-120 Corner Cleaning Machine

CCA-120 Corner Cleaning Machine

Description
CCA-120 corner cleaning machines are mainly used for cleaning the 90°corner of welding seam (upper, lower surface and outer vertical surfaces of welded PVC profiles). One-time clamping can clean the welding seams so as to achieve good appearance. Parker PVC profile corner cleaning machines are of pneumatic drive, high processing accuracy, reliable clamping and low fault rate. It can be operated and adjusted simply, and maintained conveniently. Our corner cleaning machines are important equipment for many medium-sized and large scale window and door enterprises.

Technical Parameters

Model CCA-120 PVC Profile Corner Cleaning Machine
Voltage 380V 50 Hz
Total Power 1.1 kW
Air Pressure 0.5 to 0.8 MPa
Air Consumption 15 L/min
Profile Height 25 mm to 120 mm
Max. Profile Width 120 mm
Overall Dimension 1050 mm × 670 mm × 1370 mm
Weight 270 kg

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for corner cleaning machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our machines.
3. If our customers need our company to send engineers to test PVC profile corner cleaning machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Delivery Time
1. For domestic customers, we will deliver machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver PVC profile corner cleaning machines within 25 to 30 days after receiving their order.

Parker Machinery Co., Ltd is a leading supplier and exporter of door and window equipment in China. We mainly provide aluminum window and door machines, insulating glass machines, PVC profile corner cleaning machine, curtain wall equipment, and so on. Complying with European standards, we always purchase main parts internationally. Our products have passed CE and UL certifications. They are exported to many countries and regions, such as North America, East Europe and the Middle East.
