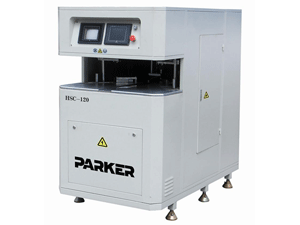

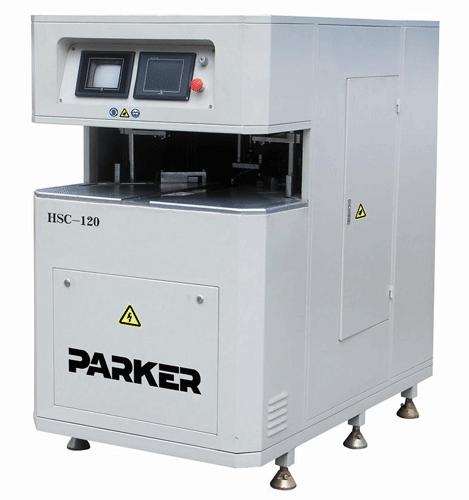

HSC-120 CNC Corner Cleaning Machine
Introduction
HSC-120 CNC corner cleaning machine is mainly applied for cleaning the welded corner of PVC door and window. This highly automatic CNC corner cleaner has multiple functions and can be used together with vertical mill, sawmill, broach, and so on. It possesses the merits of good processing quality, easy operation and easy adjustment. Parker corner cleaning machine is the ideal equipment for mass production and customized production.
Features
1. This CNC corner cleaner for PVC door and window adopts American START numerical control system that can set up two-dimension process program according to different profiles. The machine can set up and store more than 100 sets of processing programs.
2. HSC-120 CNC corner cleaning machine has the characteristics of convenient adjustment and high automation.
3. Parker CNC corner cleaner can clean the grooves of airproof bar and the unwanted welding tumor on the internal and the external surface at the same time or separately.
4. The processing program can be corrected based the spot situation, so welding seam with error can be cleaned up efficiently.
5. This CNC corner cleaning machine can also clean the upper and the lower flat welding slot with the upper and the lower vertical cutters.
Technical Parameters
| Model | HSC-120 CNC Corner Cleaner |
| Input Power Source | 380V 50 Hz |
| Main Electric Motor Power | 1.7 kW |
| Working Air Pressure | 0.5 to 0.7 MPa |
| Air Consumption | 200 L/min |
| Main Milling Cutter Rotating Speed | 2800 r/min |
| Profile Height of CNC Corner Cleaning Machine | 30 mm to 120 mm |
| Profile Width | 30 mm to 110 mm |
| Dimension With the Profile Bracket | 2000 mm × 1930 mm × 1500 mm |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for CNC corner cleaner for PVC door and window. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our corner cleaning machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time
1. For domestic customers, we will deliver CNC corner cleaners within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver corner cleaning machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products mainly cover insulating glass machine, CNC corner cleaner for PVC door and window, curtain wall equipment, and so forth. We have been dedicated to producing corner cleaning machines for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. They are highly appraised by customers from over 100 countries and districts.
