SCX02-2×60 Double Heads Water Slot Routing Machine
Description

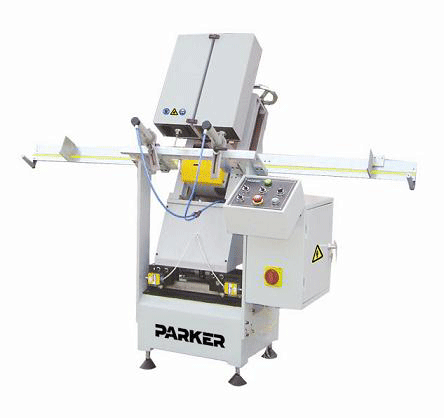

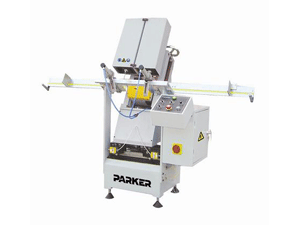

SCX02-2×60 double heads water slot routing machine mainly consists of machine head, hand driven lift mechanism, profile holding worktable and machine framework. It is mainly used for processing water slots on PVC profiles. This two axis water slot router is often equipped with two machine heads including right machine head and middle machine head. This double heads water slot routing machine uses module structure. During running, all the machine heads can work separately or work jointly. According to different requirements, we can select different configurations (left machine head, middle machine head, low head machine) for this two axis water slot router.
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for double heads water slot routing machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our two axis water slot routers.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Technical Specifications
| Model | SCX02-2×60 |
| Type | Double Heads Water Slot Routing Machine |
| Voltage | 220 V 50 Hz |
| Total Power | 0.76 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 80 L/min |
| Max. Milling Depth | 30 mm |
| Milling Length | 60 mm |
| Diameter of Milling Cutter | Ø 5 mm |
| Overall Dimension | 2100 mm × 860 mm × 1500 mm |
| Weight of Two Axis Water Slot Router | 190 kg |
Delivery Time
1. For domestic customers, we will deliver double heads water slot routing machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver our two axis water slot routers within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products mainly cover aluminum window and door machine, insulating glass machine, double heads water slot routing machine, curtain wall equipment, and so forth. We have been dedicated to producing two axis water slot routers for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. Parker products are highly appraised by customers from over 100 countries and districts.
