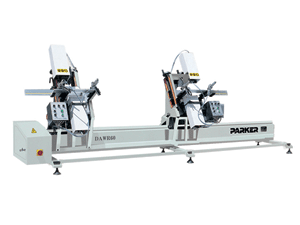

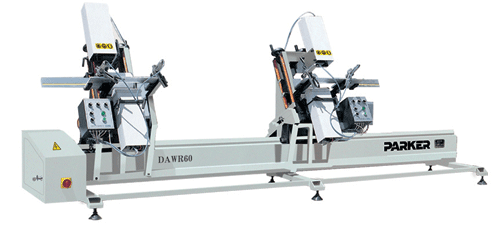

DAWR60 Double Heads Water Slot Routing Machine (Two Axis Water Slot Milling Machine)
Introduction
DAWR60 double heads water slot routing machine is equipped with two same milling heads. This two axis water slot milling machine is mainly used for processing the water slots of PVC windows and doors. It is also suitable for milling various kinds of air pressure balancing grooves and well suited for large scale processing. Parker Machinery Co., Ltd is a leading manufacturer and supplier of water slot routing machines in China. Our double heads water slot milling machines are well known for steady working, easy operation, high efficiency and convenient maintenance.
Features
1. One time clamping can finish processing of two water slots.
2. Installed with special feeding system, DAWR60 water slot routing machine features high milling quality and no special maintenance.
3. The milling length of this water slot milling machine is adjustable within 60 mm.
4. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service.
Technical Parameters
| Model | DAWR60 Double Heads Water Slot Routing Machine |
| Voltage | 220 V 50 Hz |
| Input Power | 2.28 kW |
| Working Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 9 L/min |
| Main Shaft Rotary Speed | 25000 r/min |
| Max. Milling Depth | 50 mm |
| Diameter of Milling Cutter | 5 mm 6 mm |
| Milling Length | 30 mm to 50 mm |
| Dimension | 4300 mm × 900 mm × 1600 mm |
| Weight of Water Slot Milling Machine | 1100 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for double heads water slot routing machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our water slot milling machines.
3. If our customers need our company to send engineers to test water slot routing machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading exporter of water slot milling machines. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality water slot routing machines for customers. Our products are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
