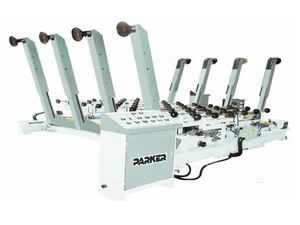

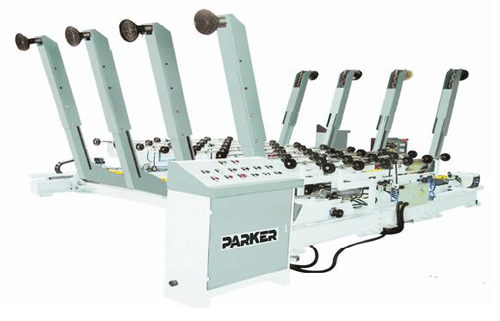

(AGC) Automatic Glass Carrying Machine

Description
Automatic glass carrying machine or automatic glass loading machine is mainly used for loading glass automatically from rack, which stands vertically, to the horizontal position. Then, glass can be transferred on horizontal position by either cutting table or another conveyor. The automatic glass loader can know the position of the glass sheet automatically and transfer the sheet to the cutting-position by roller. Driven by X and Y axis motors, the automatic glass loading machine can adjust zero position automatically to examine glass position of two stations single loading or four stations double loading.

Features of Automatic Glass Loader
1. The loading arm angle can be adjustable.
2. All axes of the automatic glass loading machine are of high accuracy.
3. PLC program is suitable for a number of maximum loading stations
4. Vacuum pads of this automatic glass loader can be adjusted according to the glass height.
5. Air pressure is controlled by pressure sensors. Leakage is controlled by vacuum sensors.
6. Lantoky automatic glass loading machine is equipped with special glass separation mechanism for loading from rack.
7. Vacuum pump and directional valves are used for glass separation process.
8. This automatic glass loader also possesses sensitive glass tilting system in order to prevent glass breaking.

Parameters of Automatic Glass Loading Machine

Model	(AGC) Automatic Glass Carrying Machine
Voltage	380V or 220 V 50 Hz
Power	9 kW
Air Pressure	0.5 to 0.8 Mpa
Vacuum Pressure	-70 to 90 Kpa
Loading Sheet Size	Min. Size: 1500 mm × 1500 mm Max. Size: 2440 mm × 3660 mm
Loading Thickness	2 mm to 19 mm
The Fastest Loading Cycle	30 s to 60 s
Transfer Speed	0 to 40 m/min
Max. Suction Depth	750 mm
Max. Loading Weight	900 kg
Unilateral Upper Arm Volume	Four Arms
The Number of Single Arm Suckers	Three
Turning Arm	Double
Loading Position	Multi-position
X Axis Normal Moving Speed	25 m/min
Y Axis Normal Moving Speed	5 m/min
Table Height of Automatic Glass Loader	900 ± 50 mm

Delivery Time
1. For domestic customers, we will deliver automatic glass loading machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Lantoky will deliver automatic glass loaders within 25 to 30 days after receiving their order.
