Rotary Coating Machine
Introduction
Rotary coating machine is a working table that is used to spread two-component glue or structure glue over the aluminum groove type hollow glass or curtain wall glass in the process of production. Our company mainly provides RCT-3 and RCT-5 rotary sealant coating tables. The operator can control the glass rising, falling and rotating by foot switch without manual support to accomplish the glass edge-sealing work. Our rotary coating machines are easy to operate and efficient to use.
Features
1. The supporting arm can be adjusted based on glass dimension.
2. Caster equipped on the surface of rotary sealant coating table makes glass move easily.
3. Operators are able to operate the foot switch for control the lifting and rotating of glass about the 0 to 90 degree and 180 to 360 degree rotation so as to complete sealing of glass edge.
4. Lantoky rotary coating machine adopts PLC control for continuous rotation or sub step rotation.
5. The support device is equipped with vacuum chuck. So our rotary sealant coating tables do not need manual holding on spreading.
Technical Parameters

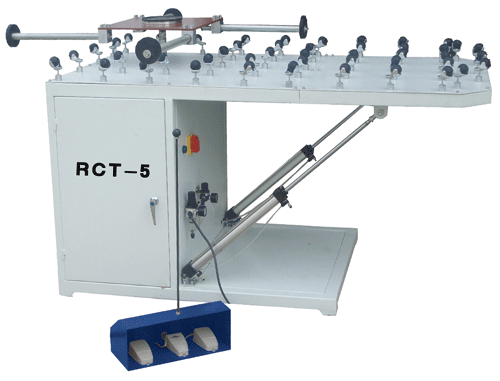

1. RCT-5 Rotary Coating Machine
| Voltage | 220 V 50 Hz |
| Power | 0.1 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 80 L/min |
| Glass Dimension | Max. 2000 × 2000 mm |
| Rotation Speed | 0 to 3.5 r/min |
| Overall Dimension | 970 mm × 870 mm × 850 mm |
| Weight | 200 kg |

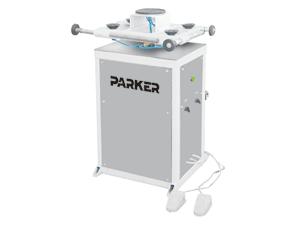

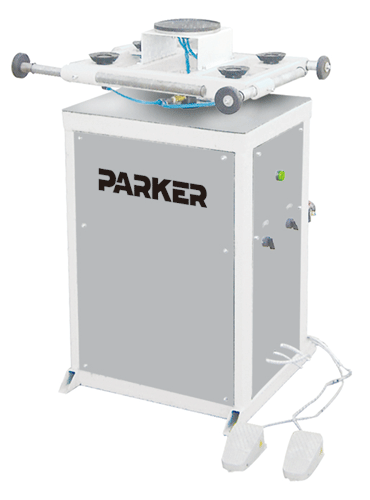

RCT-3 Rotary Sealant Coating Table
| Voltage | 380V 50 Hz |
| Power | 0.2 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 80 L/min |
| Glass Dimension | Max. 1500 × 1500 mm |
| Rotation Speed | 0 to 4.3 r/min |
| Overall Dimension | 700 mm × 450 mm × 900 mm |
| Weight | 75 kg |
Delivery Time
1. For domestic customers, we will deliver rotary coating machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Lantoky will deliver rotary sealant coating tables within 25 to 30 days after receiving their order.
Lantoky® Machine is a professional manufacturer of door and window equipment in China. Our products mainly cover aluminum window and door machine, PVC window and door machine, rotary coating machine, curtain wall equipment, and so forth. We have been dedicated to producing equipment in this field for ten years. Our rotary sealant coating tables are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. They are highly appraised by customers from over 100 countries and districts.
