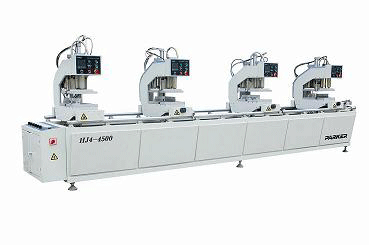

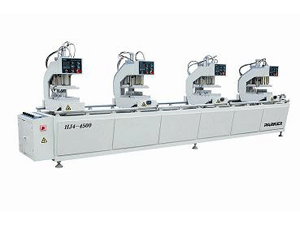

HJ4-4500 Four Head Welding Machine

Introduction
HJ04-4500 four head welding machine is widely used for PVC window and door welding processing. It can achieve the whole welding processing individually. One head of this four point welding machine can be used for welding processing with variable angles. It is also suitable for special shaped window welding, such like arch windows. The four machine heads can also be used individually, simultaneously or jointly. Parker four head welding machine is the ideal equipment for welding processing for PVC windows and doors.

Features of Four Point Welding Machine
1. It is made up of four machine heads, machine frame, electric control tank and material supporting frame. The left machine heads have a horizontal moving mechanism and move 20 mm along the track with the control of the program.
2. There are fixing mechanism, pressing mechanism, heating mechanism and head box on the head of four head welding machine.
3. HJ4-4500 four point welding machine features reliable function and easy operation.
4. It adopts PC control, pneumatic driving and locating. The movable stand adopts non-oil lubricating bearing and linear ball bearing. This makes the four head welding machine be of high precision and convenient maintenance.

Parameters Data

Model	HJ4-4500 Four Point Welding Machine
Voltage	220 V 50 Hz
Total Power	4.5 kW
Air Pressure	0.5 to 0.8 MPa
Air Consumption	80 L/min
Profile Height	20 mm to 100 mm
Max. Profile Width	120 mm
Welding Size	400 mm to 4500 mm
Overall Dimension	5500 mm × 1000 mm × 1700 mm
Weight of Four Head Welding Machine	1400 kg

Delivery Time
1. For domestic customers, we will deliver four point welding machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver machines within 25 to 30 days after receiving their order.
