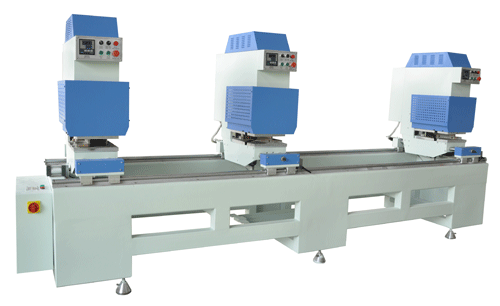

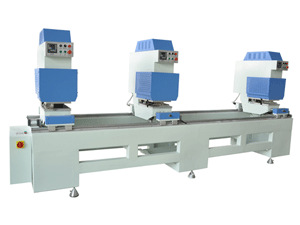

THW360 Three Head Seamless Welding Machine
Introduction
THW360 three head seamless welding machine is mainly utilized for PVC window and door welding processing and typically used for the colored UPVC profiles. It can achieve the whole welding processing individually. This three point welding machine is composed of three machine heads, machine frame, electric control tank and material supporting frame. The three head seamless welding machine is also equipped with fixing mechanism, pressing mechanism, heating mechanism and head box on the machine head.
Features of THW360 Three Point Welding Machine
1. This machine can complete welding and cleaning the corner at one time.
2. Three head seamless welding machine can also be used for welding mullions.
3. The first head from right can weld any angle, such as arch windows.
4. This three point welding machine adopts many imported parts, such as OMRON, SCHNEIDER, Ea-Sun, and so on.
5. Any head can weld alone or together with other heads.
Technical Specifications
| Model | THW360 Three Head Seamless Welding Machine |
| Voltage | 220 V 50 Hz |
| Total Power | 3.5 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 60 L/min |
| Profile Height | 20 mm to 100 mm |
| Max. Profile Width | 120 mm |
| Welding Size | 400 mm to 3500 mm |
| Overall Dimension | 4500 mm × 1740 mm × 1100 mm |
| Weight of Three Point Welding Machine | 1200 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for three head seamless welding machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our three point welding machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time of Three Head Seamless Welding Machine
1. For domestic customers, we will deliver three point welding machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver our seamless welders within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd mainly supplies three head seamless welding machine, aluminum window and door machine, insulating glass machine and curtain wall equipment for sale. With ten years' production experience, Parker three point welding machines have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker three head seamless welding machines have won widespread praise and recognition by customers.
