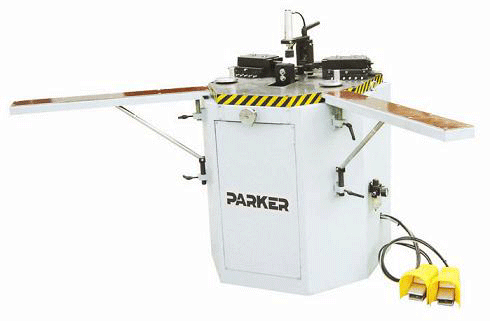

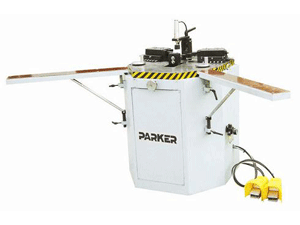

LJJD-120E Any Position Corner Crimping Machine
Description
LJJD-120E any position corner crimping machine is often used for 90° corner crimping of aluminum doors and windows. This multi-position corner combining machine adopts special crimping technology to keep synchronous crimping. There are adjustable positioning devices for different profile knives. Differential corner combination is possible and the adjustment is easy and convenient.
Features of LJJD-120E Corner Crimping Machine
1. This multi-position corner combining machine uses new linkage structure, making corner assembling synchronous.
2. Left and right punching heads feed synchronously to avoid deformation in the corner assembling procedure to make window corner connection more solid.
3. Synchronous feeding structure of this corner crimping machine makes adjustment simple and easy.
4. Parker multi-position corner combining machines can be equipped with single-blade multipoint blades, making corner-forming more reliable, work more efficient, manufacturing more precision and quality more excellent.
5. The blades can be adjusted up and down relatively by the threads.
Technical Parameters
| Model | LJJD-120E Corner Crimping Machine |
| Type | Multi-Position Corner Combining Machine |
| Joint Seam Error | ≤ 0.15 mm |
| Power Supply | 380V 50 Hz (Three Phase, Four Wire) |
| Input Power | 1.5 kW |
| Hydraulic System Pressure | 15 Mpa |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 30 L/min |
| Dimension of the Cutter | 3 mm 5 mm 8 mm |
| Width of Profile | 120 mm |
| Overall Dimension | 760 mm × 680 mm × 1400 mm |
| Weight of Corner Crimping Machine | 360 kg |
Parker Machinery Co., Ltd is a leading supplier and exporter of multi-position corner combining machines in China. We aslo provide insulating glass machine, PVC window and door machine, curtain wall equipment, and so on. Complying with European standards, we always purchase main parts internationally. Our corner combining machines have passed CE and UL certifications. They are exported to many countries and regions, such as North America, East Europe and the Middle East.
