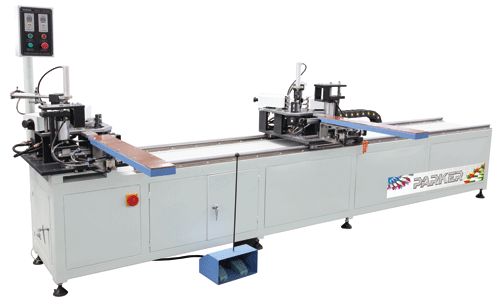

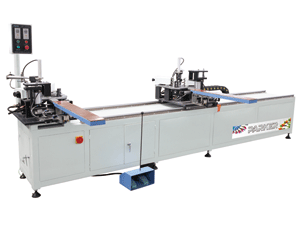

LJJZ2A-100×3500 Automatic Feeding Double Corner Crimping Machine

Introduction
LJJZ2A-100×3500 automatic feeding double corner crimping machine can feed automatically and process aluminum doors and windows. It is used for riveting and crimping corners in double heads of frames or sashes synchronously. Owing to its plunger type hydraulic system, this automatic crimping machine is highly praised for efficient rivet punching and firm corner connecting. Operators can adjust the hold-down and positioning device in the vertical direction, so as to process profiles with diverse specifications. The double corner crimping machine adopts unique double foot valve design that makes pre-compaction more effective, facilitates cutting and corner crimping, and reduces the rejection rate. This automatic crimping machine can be also equipped with an auxiliary compression mechanism to help to feed materials.

Features
1. Due to convenient locating and clamping device setting, the automatic feeding double corner crimping machine has a wide profile processing range.
2. Two-corner connecting at one time is available with high production efficiency.
3. Hydraulic system of this automatic crimping machine provides large punching and riveting force.
4. Super precision linear kinematic pair contributes to high processing accuracy.
5. Parker double corner crimping machines can feed automatically and operate easily.
6. The double-foot brakes make it operate freely and the defect rate lowered. Therefore, the efficiency and the precision of this automatic crimping machine are increased greatly.

Parameters Data

Model	LJJZ2A-100×3500
Type	Automatic Feeding Double Corner Crimping Machine
Joint Seam Error	≤ 0.15 mm
Power Supply	380V 50 Hz (Three Phase, Four Wire)
Hydraulic System Pressure	15 Mpa
Air Pressure of Automatic Crimping Machine	0.5 to 0.8 Mpa
Air Consumption	60 L/min
Oil Tank Capacity	40 L
Max. Distance between the Two Heads	Max. 3000 mm (3500 mm) Min. 450 mm
Min. Dimension of the Profile	450 mm
Width of Profile	100 mm
Overall Dimension	4300 mm × 1200 mm × 1350 mm
Weight of Automatic Crimping Machine	1200 kg

Parker Machinery Co., Ltd mainly supplies double corner crimping machine, insulating glass machine, PVC window and door machine and curtain wall equipment for sale. With ten years' production experience, Parker automatic crimping machines have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on. Parker can also send our engineers to test the machines and to train the customers' workers.
