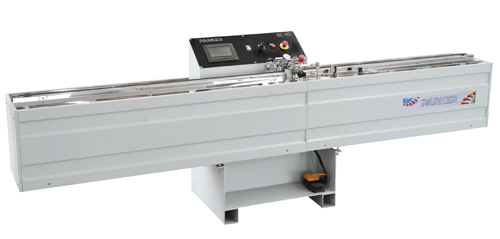

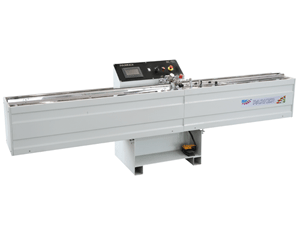

BC-10 Butyl Coating Machine
Introduction
BC-10 butyl coating machine is specially used for spreading butyl rubber evenly on both sides of aluminum frame. It is equipped with imported photoelectric and PCC control system and convey belt. This butyl rubber coating machine possesses many advantages, such as evenly coating glue, large amount of extruding glue, high production efficiency, convenient operation and maintenance, and high automation. In addition, Parker butyl coating machine is easy to operate with stable performance and good working result. It is a necessary machine for producing hollow glass. This butyl rubber coating machine is also available for arc aluminum spacer.
Characteristics
1. Controlled by PLC, digital display system can show us the quantity of the glue automatically.
2. BC-10 butyl coating machine has the features of stepless speed regulation and full automation of location, transmission and rubber spreading.
3. This butyl rubber coating machine adopts advanced imported air and hydraulic pressure system with even and stable pressure.
4. Butyl spreading is well-proportioned and the linearity is good.
5. Our butyl coating machines adopt the imported hydraulic and pneumatic supercharging system.
6. Temperature and pressure can be adjusted automatically.
7. The butyl jar warning system of this butyl rubber coating machine will work when glue material is used up.
Parameters of BC-10 Butyl Coating Machine
| Voltage | 380V 50 Hz |
| Power | 1.8 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 50 L/min |
| Transmit Speed | 0 to 35 m/min |
| Temperature | 100°C to 140°C |
| Squeeze Pressure | 8 to 15 Mpa |
| Adjustable Range | 3 mm to 30 mm |
| Overall Dimension | 3000 mm × 680 mm × 1080 mm |
| Weight of Butyl Rubber Coating Machine | 850 kg |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for butyl coating machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our butyl rubber coating machines.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Delivery Time
1. For domestic customers, we will deliver butyl coating machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver butyl rubber coating machines within 25 to 30 days after receiving their order.
Parker Machinery Co., Ltd mainly supplies aluminum window and door machine, PVC window and door machine, butyl coating machines and curtain wall equipment for sale. With ten years' production experience, Parker butyl rubber coating machines have been well received for high quality, guaranteed service and favorable price. The main market includes North America, East Europe, the Middle East, and so on.
