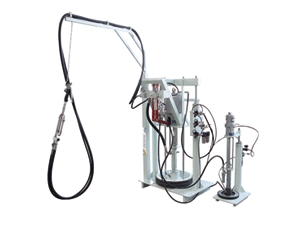

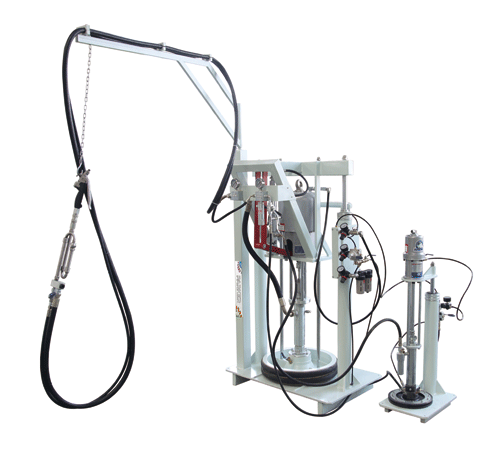

TCC300A Two Component Coating Machine
Introduction
TCC300A two component coating machine is a special machine spreading two-component polysulphide sealant when making aluminum groove type insulating glass and curtain wall glass. Controlled by no-touch-point electric control system, this two component sealant extruder is smooth to run, flexible and reliable to change direction, and continuous and stable to extrude sealant. The main and auxiliary pumps are activated by hydraulic lubrication oil and compressed air. Parker two component coating machine also adopts imported parts to ensure its coating quality. Featuring high efficiency, convenient operation and maintenance, this two component sealant extruder becomes one of the most important equipment to make insulating glass and curtain wall glass.
Working Principle
Two component coating machine is an automatic equipment specially used to overlay coating material on surface of the products automatically. Coating material is fed into the glue tube by compressed air, and then it is coated on the products by program control according to the pre-set route.
Data of TCC300A Two Component Sealant Extruder
| Model | TCC300A Two Component Coating Machine |
| Voltage | 380V 50 Hz |
| Power | 1.1 kW |
| Air Pressure | 0.5 to 0.8 Mpa |
| Air Consumption | 0.6 L/min |
| A Pump Pressure Plate Size | Φ565 (50 gallon barrel) |
| B Pump Pressure Plate Size | Φ285 (5 gallon barrel) |
| Mixed Rate | 100 : 6.5 to 100 : 14.5 |
| Overall Dimension | 1100 mm × 950 mm × 1630 mm |
| Weight of Two Component Sealant Extruder | 600 kg |
| Glue Type | SILICON, SULFIDE, URETHANE |
Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for two component coating machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our two component sealant extruders.
3. If our customers need our company to send engineers to test two component coating machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.
Parker Machinery Co., Ltd is a leading supplier and exporter of door and window machines in China. We have been committed to developing door and window machines for over 10 years. The products mainly cover two component sealant extruder, aluminum window and door machine, PVC window and door machine, curtain wall equipment, etc. With a professional technical team of first-class rich experience and well-trained technicians, our two component coating machines have received a number of favorable comments from customers both home and abroad.
