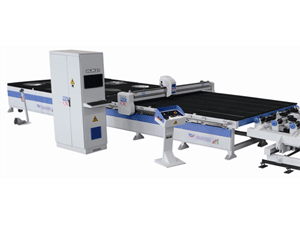

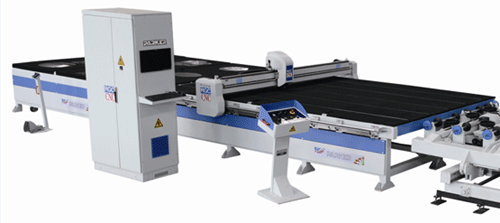

Automatic Glass Cutting Machine

Introduction
Parker automatic glass cutting machine is quite suitable for cutting different specifications of linear and rectangular glass. It should be the first choice for enterprises engaged in processing sophisticated glass, such as decoration glass, special glass, commodity glass, glass for electronic applications, glass for medical use, etc. Featuring accurate transmission, and fast and convenient cutting size adjustment, the automatic glass cutting machinery is especially suitable for users who want to frequently change the specification of glass.

Features
1. This type of glass cutting table is equipped with advanced international high-precision servo motors and bearing spindles. The onboard controller consists of PLC computer, CD drive, tough screen and reliable peripherals.
2. Parker automatic glass cutting machinery adopts imported servo motor, CNC controller and guide rail.
3. Advanced control interface makes it easy to handle and acquire high cutting precision.
4. It adopts double mechanical movement bridge system that is automatically driven by motor.
5. Glass breaking machine and glass loading machine are optional.
6. Our automatic glass cutting machinery is more reliable and endurable.

Technical Specifications

Voltage	380V / 220 V 50 Hz
Power	5 kW
Air Pressure	0.8 Mpa
Max.Glass Cutting Size	3660 cm × 2500 cm
Cutting Bridge Speed	0 to 150 m/min
Working Table Height	900 ± 50 mm
Glass Cutting Thickness	2 to 25 mm
Cutting Precision	≤ ± 0.20 mm
Cutter Head Speed	≥ 160 m/min
Cutter Positioning Error	≤ ± 0.15 mm
Cutting Operation	Automatic glass cutting machinery uses air pressure and the spring SMC precision digital display module. The cutter head rotates 360 degree. The upper and lower cutter can cut glass into different shapes.
Oil Injection Mode	Automatic oil inject device
Conveying Device	Automatic induction of synchronous belt transmission device (It is convenient for glass transmission to achieve automatic transmission to reduce the manual workload.)
Glass Positioning	The photoelectric scanning positioning system and machine positioning can be used together
Platen	Imported, waterproofing or fireproofing
Rack or Guide Rail	Taiwan YYC
Main Bearing	Japan NSK
Transmission Belt or Belt Wheel	Italy BAILEY
Cutter Wheel or Wheel Clamp	Germany BOHLE
PC Computer Control	Windows interface
Servo System	Japan OMRON
Controlling Card	Imported from Italy
Electrical Parts	OMRON and SCHNEIDER
Main Pneumatic Parts	Japan SMC, Taiwan AIRTAC
Cutting and Optimization Software	OPTIMA Italy

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for glass cutting tables. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our automatic glass cutting machinery.
3. If our customers need our company to send engineers to test machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products mainly cover aluminum window and door machine, automatic glass cutting machine, PVC window and door machine, curtain wall equipment, and so forth. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. Parker automatic glass cutting machinery is highly appraised by customers from over 100 countries and districts.
