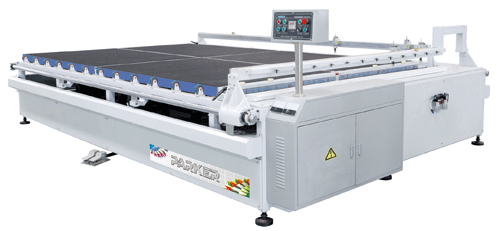

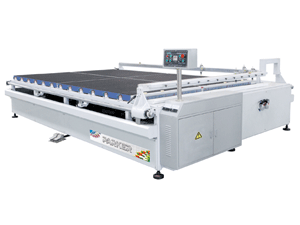

RGC Rectilinear Glass Cutting Machine

Description
RGC rectilinear glass cutting machine is the ideal equipment to cut glass sheet in glass deep processing industry. It is applicable for cutting 3 mm to 12 mm sheet glass, with the maximum cutting dimension of 3900 mm × 2500 mm. This glass cutting equipment is well received for high cutting accuracy, high reliability and easy maintenance. Our company mainly supplies RGC-600, RGC-10575, RGC-1085, RGC-1510, RGC-1612, RGC-17135, RGC-2116, RGC-2520, RGC-2620, RGC-2621, RGC-3026, RGC-3526 and RGC-4026 rectilinear glass cutting machines. Parker glass cutting equipment can also be used for windows, doors, screen walls, showcases, etc.

Features
1. RGC rectilinear glass cutting machine is of high efficiency and is easily operated to cut with multi-cutter.
2. Cutter holder is with self-lubricating function. It is easy to change the cutter wheel.
3. This glass cutting equipment is with high precision attractive appearance and long life.
4. All the linear guide rails and the knife wheels are imported from abroad.
5. Our rectilinear glass cutting machines have passed the CE certification.
6. This machine can be fitted with twenty cutters.

Parameters of RGC Rectilinear Glass Cutting Equipment

Model	Outline Dimension	Tabletop Size	Glass Sheet Size	Sheet Size	Cutting Accuracy
Model	L × W × H	L × W	L × W	L × W	Parallelism	Catercorner
RGC-600	1500 × 1400 × 1450	600 × 600	550 × 550	20 × 20	± 0.15	± 0.20
RGC-10575	1800 × 1500 × 1450	1050 × 750	950 × 650	20 × 20	± 0.15	± 0.20
RGC-1085	1980 × 1800× 1450	900 × 850	800 × 750	20 × 20	± 0.15	± 0.20
RGC-1510	2230 × 2000 × 1450	1500 × 830	1400 × 900	20 × 20	± 0.15	± 0.20
RGC-1612	2335 × 2010 × 1450	1630 × 1240	1530 × 1140	20 × 20	± 0.15	± 0.20
RGC-17135	2440 × 2160 × 1450	1700 × 1350	1650 × 1300	20 × 20	± 0.15	± 0.20
RGC-2116	2780 × 2310 × 1450	2100 × 1600	2000 × 1500	20 × 20	± 0.15	± 0.20
RGC-2520	3185 × 2750 × 1450	2500 × 2000	2400 × 1900	20 × 20	± 0.15	± 0.20
RGC-2620	3285 × 2750 × 1450	2600 × 2000	2500 × 1900	20 × 20	± 0.15	± 0.20
RGC-2621	3285 × 2850 × 1450	2600 × 2100	2500 × 2000	20 × 20	± 0.15	± 0.20
RGC-3026	3660 × 3350 × 1450	3000 × 2600	2900 × 2500	20 × 20	± 0.15	± 0.20
RGC-3526	4160 × 3350 × 1450	3500 × 2600	3400 × 2500	20 × 20	± 0.15	± 0.20
RGC-4026	4660 × 3350 × 1450	4000 × 2600	3900 × 2500	20 × 20	± 0.15	± 0.20

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for rectilinear glass cutting machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our linear glass cutting equipment.
3. If our customers need our company to send engineers to test rectilinear glass cutting machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Delivery Time
1. For domestic customers, we will deliver glass cutting equipment within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver rectilinear glass cutting machines within 25 to 30 days after receiving their order.

Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of glass cutting equipment. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality door and window equipment for customers. Our rectilinear glass cutting machines are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
