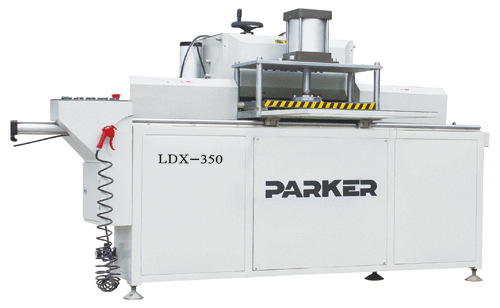

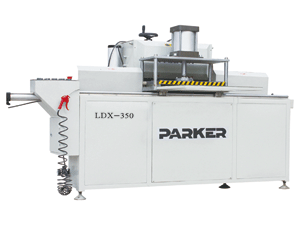

LDX-350 Aluminum Profile End Face Milling Machine
Description
LDX-350 aluminum profile end face milling machine is a kind of end milling machine different from other end milling machines. It is quite suitable for aluminum profiles. The processing angle is adjustable ranging from 30° to 90°. With adjustable worktable, it is convenient for tool setting. Tool main shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the working accuracy of this aluminum profile end face milling machine. Equipped with bidirectional valve, Parker end milling machines can mill profiles with high efficiency.
Features
1. It also has a special design for the curtain wall profile.
2. LDX-350 aluminum profile end face milling machine does not need ordering tools when processing various profiles, thus can decrease cost and save time.
3. Parker end milling machine is featured with large tool diameter, high milling speed and good processing result.
4. Convenient tool adjustment can meet different processing requirements. It has an adjusting gauge contributing to exact adjustment.
5. Our aluminum profile end face milling machines are specially designed with safe guards. They can clip the profiles tightly even when electricity is cut off suddenly. So it can ensure the operator's safety.
6. Our end milling machines can process several profiles at one time, which increases the processing efficiency.
Technical Parameters
| Model | LDX-350 Aluminum Profile End Face Milling Machine |
| Voltage | 380V 50 Hz |
| Motor Power | 6.6 kW |
| Motor Adjusted Travel | 0 to 85 mm |
| Supporting Profile Operating Platform | 0 to 1050 mm |
| Supporting Profile Operating Platform Size | 530 × 320 mm |
| Air Pressure | 0.5 to 0.8 MPa |
| Blade Specification | Φ350 × Φ30 × 3.2 Z = 100 Φ250 × Φ32 × 6.5 Z = 40 |
| Rotary Speed | 2840 r/min |
| Surface Harshness | Ra12.5 µ m |
| Overall Dimension | 2700 mm × 1060 mm × 1670 mm |
| Weight of Aluminum Profile End Milling Machine | 930 kg |
Established in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With ten years' production experience, Parker has become a leading manufacturer of aluminum profile end face milling machines. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality door and window equipment for customers. Our end milling machines are exported to many countries and regions, such as North America, East Europe and the Middle East. They have won widespread praise and recognition by customers.
