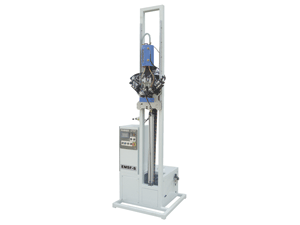

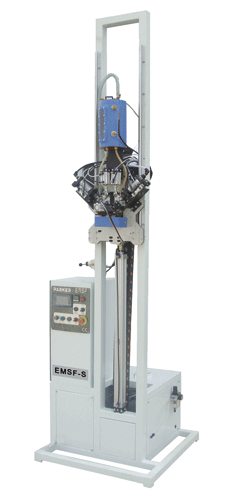

EMSF-S Automatic Lift-Type Molecular Sieve Filling Machine

EMSF-S Automatic Lift-Type Molecular Sieve Filling Machine

Introduction
EMSF-S lift-type automatic molecular sieve filling machine adopts PLC control system. It can automatically punch holes and fill the molecular sieve. This automatic desiccant filling machine is well suited for both bended and corner-connected spacers. Operators can adjust the filling height according to spacer size. Based on the length of aluminum spacer, we can set the filling time to ensure enough molecular sieves can be filled into the aluminum spacer.

Service
1. Parker provides one year guarantee time. During the warranty period, we supply free repair for automatic molecular sieve filling machines. But for some wearing parts, such as milling cutter, saw blade, electromagnetic valve, belt and chain, the express fee should be paid by the buyer.
2. We try our best to deal with any question about our automatic desiccant filling machines.
3. If our customers need our company to send engineers to test automatic molecular sieve filling machines and to train their workers, they should pay for our engineers' round trip tickets, board and lodging during testing and teaching, and subsidy USD 40 per day.

Technical Parameters

Model EMSF-S Automatic Molecular Sieve Filling Machine
Desiccant Diameter 0.5 mm to 0.8 mm
Spacer Width 5.5 mm to 24 mm
Max. Filling Frame Size 2000 mm × 2000 mm
Air Pressure 0.6 Mpa
Power 220 V 50 Hz
Dimension of Automatic Desiccant Filling Machine 1680 mm × 1080 mm × 3050 mm

Delivery Time
1. For domestic customers, we will deliver automatic desiccant filling machines within 15 to 20 days after receiving customers' order.
2. For oversea clients, Parker will deliver automatic molecular sieve filling machines within 25 to 30 days after receiving their order.

Founded in 2003, Parker Machinery Co., Ltd has been engaged in producing door and window equipment for ten years. The main products include aluminum window and door machine, automatic desiccant filling machine, PVC window and door machine, curtain wall equipment, and so on. We offer our clients with qualified products, guaranteed service and favorable price. Our automatic molecular sieve filling machines have been exported to South Korea, Canada, USA, Australia, France, Iran, South Africa, etc.
